Omnitronic LH-070 aktiivinen DI-boxi

Omnitronic LH-070 aktiivinen DI-boxi

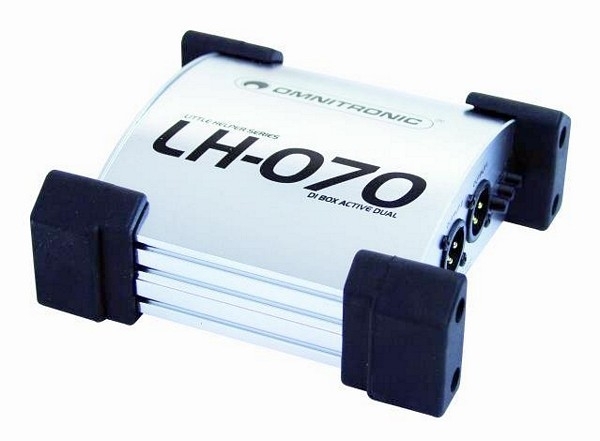

LH-070, active DI-box DUAL


- Active dual DI-box
- Converts 50 kOhms instrument-inputs into balanced mixer-outputs
- Power supply via 9 V battery
- Ground-lift switch
- Attenuation adjustable at 0 dB/-20 dB/-30 dB
- 2 low-impedance XLR-outputs
- Mono-mode: the signal is splitted from input 1 on both outputs
- Phase-switch, Hi Cut-switch
- Modern convex housing design
- Full-rubber-isolated housing corners for safe operation
- Cables can be routed under the housing

Technical specifications

- Frequency range: 10 Hz - 30 kHz
- Input impedance: 470 kOhms
- Output impedance: 600 Ohms
- Maximum output level: 6 dBu
- Maximum input level: 4/24/44 dBu
- Dynamic range: >100 dB
- Hi Cut: 10 kHz
- Input Connectors: XLR mounting sockets
- Output Connectors: XLR mounting plugs
- THD: 0.5 %
