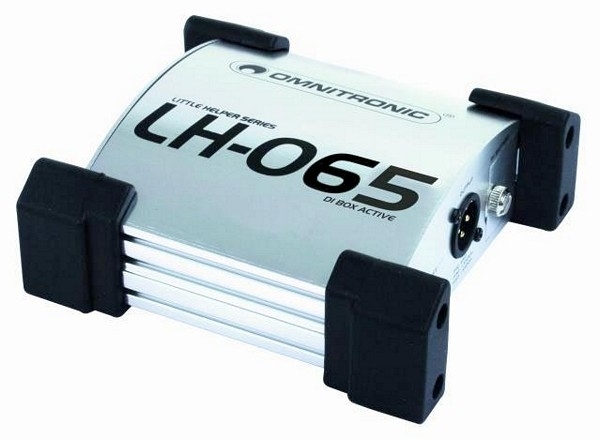

Omnitronic LH-065 aktiivinen DI-boxi

Omnitronic LH-065 aktiivinen DI-boxi

LH-065, active DI-box

- Active DI-box
- Converts 50 kOhms instrument-input into balanced 600-Ohms-mixer-output
- Jack-link-output
- Power supply via 9 V battery
- Ground-lift switch
- Attenuation adjustable at 0 dB/-20 dB/-40 dB
- 1 low-impedance XLR-output
- Modern convex housing design
- Full-rubber-isolated housing corners for safe operation
- Cables can be routed under the housing

Technical specifications

- Frequency range: 10 Hz - 30 kHz
- Input impedance: 470 kOhms
- Output impedance: 600 Ohms
- Maximum output level: 6 dBu
- Maximum input level: 4/24/44 dBu
- Dynamic range: >100 dB
- Input Connectors: XLR and jack mounting sockets
- Output Connectors: XLR mounting plug
- THD: 0.5 %
