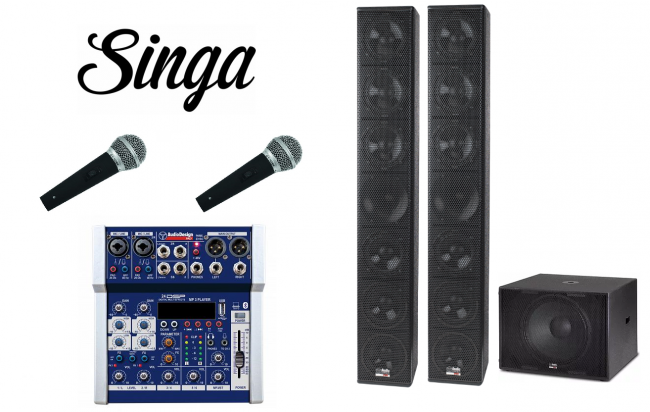

KARAOKE POWERHOUSE 1 - karaoke package

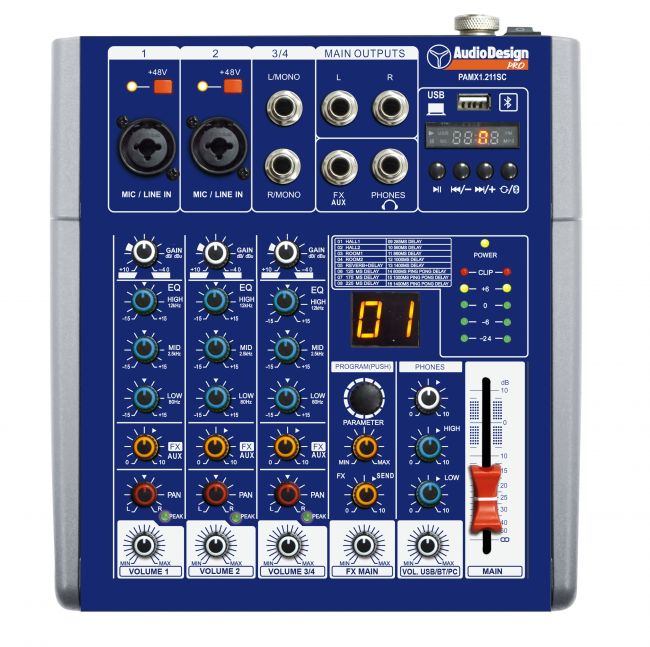

PAMX1
2 - 4 Mono - 1 Stereo channel - 1 USB / BT / PC channel - 16 effects with DSP A compact series with high level performance and effects, perfect for live and versatile for any use. The Sound Card function allows interactive use (IN - OUT) with a PC



- 2 Mono Mic Inputs (XLR) / LINE IN (Balanced Jack)

- 1 Stereo Line Input (Jack unbalanced)

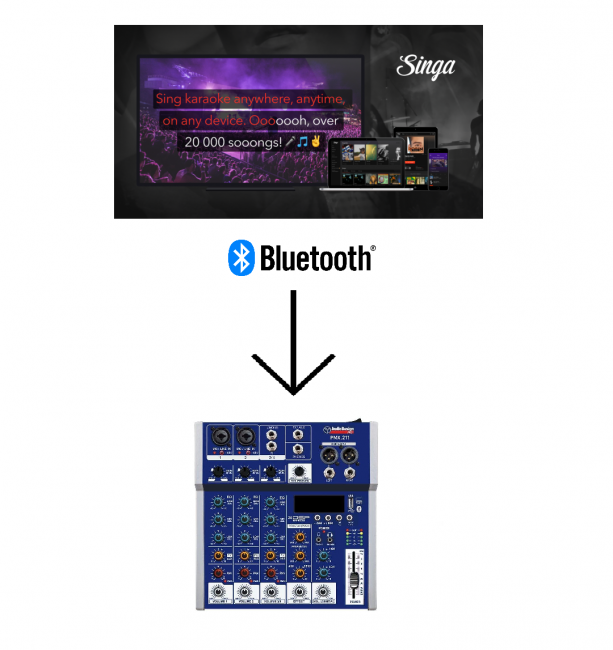

- 1 USB / BT input or PC connection (Sound Card In-Out function)

- EQ +/- 15 dB (Treble 15 KHz - Mid 2.5 KHz - Bass 80 Hz) on all inputs • Peak indicator on Mono and Stereo inputs

- Adjustment of effects level on Mic and Line channels

- Adjustment of the effects level on the Main

- Multi effect DSP 16 effects including 4 types of Reverb

- + 48 V Phantom power supply

- Stereo Main Jack unbalanced output)

- FX / Aux output (unbalanced Jack) with level adjustment - Stereo Tape Out (RCA)

- Stereo headphone output (stereo jack) with level adjustment - External 220 V power supply

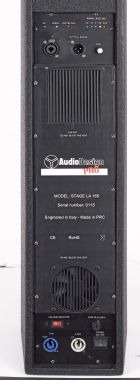

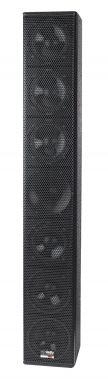

Professional 2-way loudspeaker in Vertical Line Array configuration



- Mid-woofer: 165mm x 6

- Driver: Ø 44 with 110 ° horizontal dispersion
- MAX power (W): 1800
- RMS power (W): 900
- Frequency response (Hz): 100-20,000



Dimensions WxDxH (cm): 19x25x127
Weight (Kg): 22.50

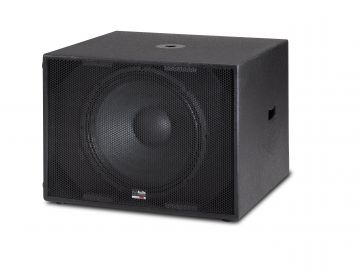

Compact active subwoofer



Max / RMS Power: 1500/500 W

Woofer: 15 "/ 35 mm

Voice Coil: ø 75 mm



They are adjustable with the rotary control of the DSP:

- The Sub's output level

- High pass frequency

- Low pass frequency

- Any frequency of emphasis or attenuation (between 20 and 200 Hz)

- The amplitude of the emphasis or attenuation bell (Q 0.3 to 10)

- Adjustment of gain or attenuation (+ / - 15 dB)

- Locking of the menu Source settings: Satellite PA 120 Hz 24 dB / oct Butterworth PB Sub 100 Hz 24 dB / oct Butterworth PEQ (equalization): FLAT (80 Hz frequency is set with Q 2) Subsonic PA 30 Hz 24 dB / oct Butterworth

Dim.59x53x45 cm - Weight 29 kg

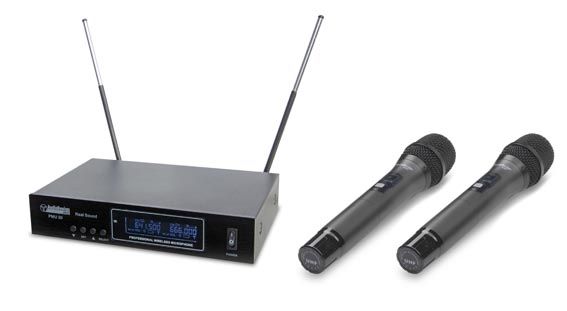

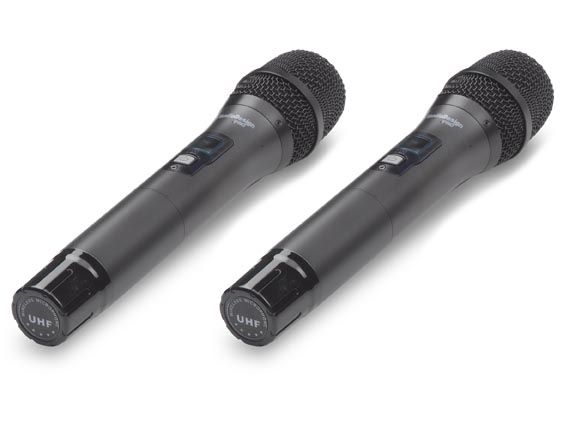

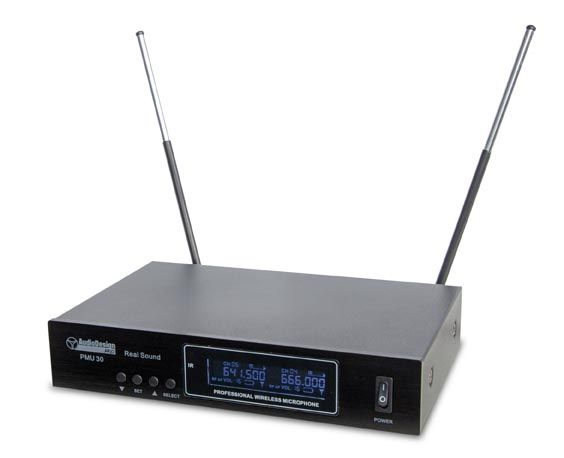

AudioDesignPRO PMU-30
