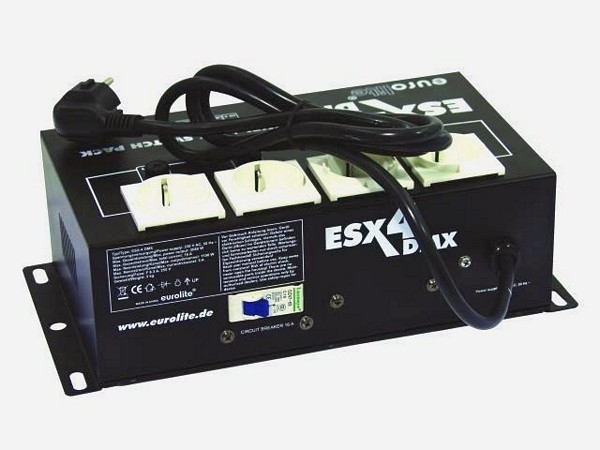

EUROLITE ESX-4 DMX switch pack

EUROLITE ESX-4 DMX switch pack

4-channel DMX-switch pack

- 4 controllable channels
- 5 A resistive load per channel
- Maximum current 16 A
- Outputs via 4 safety sockets
- LED-display of all channels
- DMX-512 input and output
- DMX-starting address adjustable via Dip-switches
- For trussing and mounting directly at the device

Technical specifications

Power supply: 230 V AC, 50 Hz ~
Max. power output: 3680 W
Max. total current: 16 A

Number of channels: 4
Resistive load/channel: 1150 W
Max. current/channel: 5 A

Output sockets: 4 safety power outlets

DMX-output: 3-pin XLR-mounting-plug
DMX-input: 3-pin XLR-mounting-jack

Dimensions: 320 x 165 x 110 mm
Weight: 3 kg
