EUROLITE DPX-610 DMX- digitaalinen himmennin pakki

EUROLITE DPX-610 DMX- digitaalinen himmennin pakki

DPX-610 DMX-control or analogue control, 6 channel x 2300W, Max. output 13800W, pole connectors

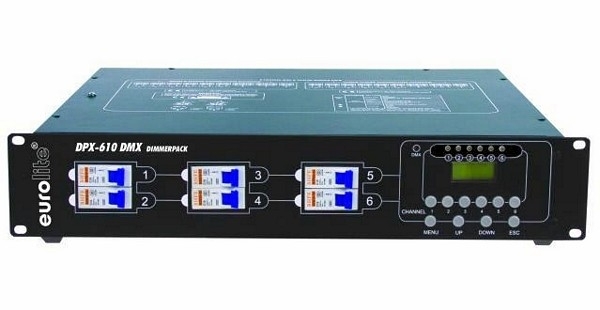

DPX-610 DMX 19" dimmer pack, digital 6-channel dimming pack, 6 x 10 A

- Universal dimming pack for professional use
- Can be operated 1-phase or 3-phase
- 6 x 10 A
- DMX-control or analogue control possible
- The DMX-starting address can be adjusted on the device
- Synchronisation of several DPX-610 possible via DMX
- Adjusting the lamp pre-heat
- All modes are displayed via LEDs and the display
- With automatic circuit breaker per channel
- Display of internal temperature and automatic fan-control if overheated
- Channel-outputs on the rearpanel via pole connectors

Technical specifications

- Power supply: 230 V AC, 50 Hz ~
- Max. power output: 13800 W
- Max. current: 60 A

Number of control-channels: 6
Max. output/channel: 2300 W
Max. current/channel: 10 A

Integrated programs: 12

Output sockets: Via pole connectors
Fuse: 6 x F 10 A, 230 V

Dimensions (WxDxH): 443 x 482 x 95 mm
19" mounting dimensions with 2 u
Minimum mounting depth: 160 mm
Weight: 10 kg
