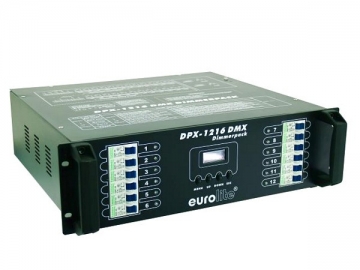

EUROLITE DPX-1216 DMX 12-kanavainen digitaalinen himmennin pakki
EUROLITE DPX-1216 DMX 12-kanavainen digitaalinen himmennin pakki 3680W
Digital 12-channel power-pack
- Universal power-pack for professional use
- Can be operated 1-phase or 3-phase
- 12 x 16 A
- DMX-control via every standard DMX-controller
- The DMX-starting address can be adjusted on the device for each channel individually
- Synchronisation of several DPX-1216 possible via DMX
- Each channel can either be dimmed or switched
- Adjusting the lamp pre-heat for the dimmed channels
- All modes are displayed on the display
- With automatic circuit breaker per channel
- Channel-outputs on the rear panel via pole connectors
Technical specifications
Power supply: 230-380 V AC, 50 Hz ~
Max. power output: 44160 W
Max. current: 192 A
Number of control-channels: 12
Max. output/channel: 3680 W
Max. current/channel: 16 A
Integrated programs: 12
Input: Via pole connectors
Output sockets: Via pole connectors
Fuse: 12 x B 16 A, 230 V
Dimensions (WxDxH): 482 x 450 x 140 mm
19" mounting dimensions with 3 u
Minimum mounting depth: 470 mm
Weight: 12 kg
