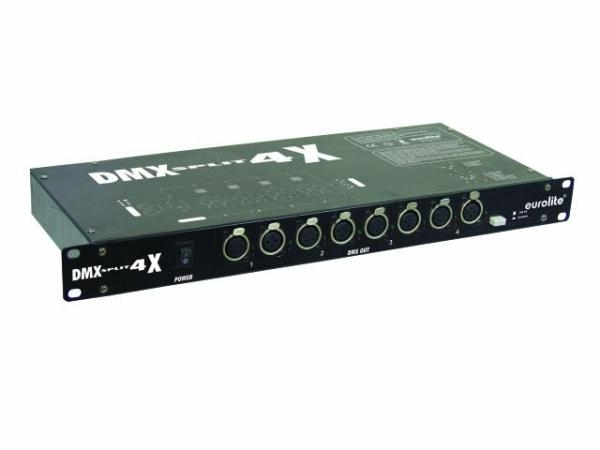

EUROLITE DMX Split 4X yksi DMX neljään splitteri

EUROLITE DMX Split 4X yksi DMX neljään splitteri

Tällä splitteri jaat yhden DMX-signaalin neljään.

4-fold DMX-splitter for rack-mounting

- Dmx distributor with one input and four output
- Absolute electric isolation between input and output, or between output and output
- Two types of DMX connector (3 pin & 5 pin) for each individual channel
- Every DMX output features an independent driver, data & data-indicator
- DMX switch is incorporated allowing isolation from the malformation caused by DMX input
- Input and output with a set of respective power supply and 500 mA internal fuse

Technical specifications

Power supply: 230 V AC, 50 Hz ~
Power consumption: 20 W
DMX 512-output: 3-pin or 5-pin XLR-connector
Dimensions (LxWxH): 483 x 190 x 44 mm
Weight: 3 kg
