EUROLITE DMX Split 6X yksi DMX-signaali kuuteen splitteri

 EUROLITE DMX Split 6X yksi DMX-signaali kuuteen splitteri

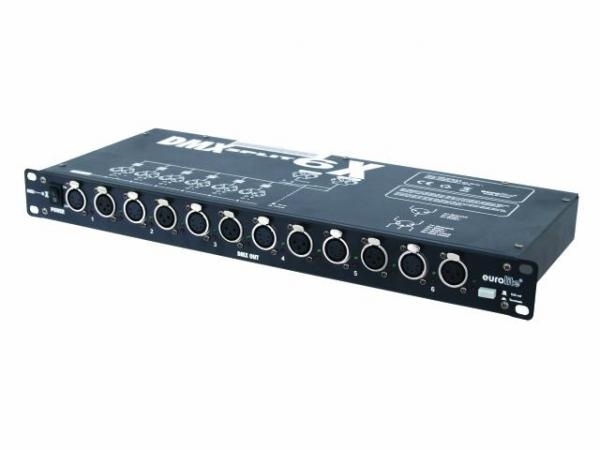

DMX Split 6X, Kuudella ulostulolla, 3 sekä 5- pin xlr, 6-fold DMX-splitter for rack-mounting

MX Split 6X, Kuudella ulostulolla!

Tämä räkkikokoinen 1 U DMX jako on loistava keikka sekä kiinteään asennukseen. Ammattikäytössä hyväksi havaittu ja voidaan suositella kaikkeen käyttöön!

A lot of fun, without any risk is assured with this DMX Split.
There are two aspects, that are responsible for the risk to be almost completely eliminated: One DMX-line is partitioned into six lines and due to the fact, that all outputs are seperated galvanically, one broken line will not cause a blackout.
When a lighting performance without any disturbance is aspired, then this DMX Split is a must-have.


6-fold DMX-splitter for rack-mounting

- Dmx distributor with one input and four output
- Absolute electric isolation between input and output, or between output and output
- Two types of DMX connector (3 pin & 5 pin) for each individual channel
- Every DMX output features an independent driver, data & data-indicator
- DMX switch is incorporated allowing isolation from the malformation caused by DMX input
- Input and output with a set of respective power supply and 500 mA internal fuse

Technical specifications

Power supply: 230 V AC, 50 Hz ~
Power consumption: 35 W
DMX 512-output: 3-pin or 5-pin XLR-connector
Dimensions (LxWxH): 483 x 200 x 50 mm
Weight: 3 kg
